PRECEDENT®

The Precedent® platform utilizes an all-new DDE (Diesel Direct Electric) architecture to drive optimum efficiencies and double-digit fuel savings across real-world applications. It’s a smarter approach, with the expressed goal of making a lasting difference on your budget. In addition to brand-new technologies, there are also some familiar components residing within the Precedent® architecture. The well-proven X-430 reciprocating compressor provides the performance and reliability Thermo King is famous for and, when combined with the new architecture, delivers better operating efficiencies than ever before.

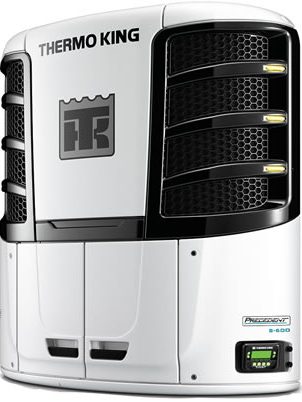

Precedent S600 Unit

Advantages

  • Proven Diesel Direct Architecture
    Drives optimum efficiencies and double-digit fuel savings while ensuring minimal energy loss when compared to an all-electrical solution.
  • Common Rail Fuel Injection
    Meets all known emissions standards without the need for an expensive after-treatment system.
  • Advanced Condenser System
    Unique micro-channel condenser coils more than double the surface area to improve airflow and eliminate “dead spots” across the entire structure.
  • Comprehensive Support
    Every Precedent® unit is backed by the Thermo King Dealer Network with over 200 locations across North America.

Select Spec

The Precedent® line of TRUs gives you the ability to be “evergreen” in meeting Tier 4 Final Emissions Standards and California Air Resource Board’s ULETRU standards by selecting the S-600. Thermo King also offers similar performance in the C-600 TRU which is CARB compliant for up to seven years. Either unit is going to bring outstanding operational performance while delivering double-digit fuel savings.

C-600 Single Temp

Diesel Engine Power

Dimensions
  • 83.5″H X 81.7″W X 23.9″D
Refrigeration Capacity: (BTU/hr)
  • 35° – 59,000
  • 0° – 34,000
  • -20° – 21,000
Heating Capacity* (BTU/hr)
  • 35/0° ambient – 53,000
Airflow Capacity
  • 3,300ft3/min
Engine
  • TK488 – four cylinder, direct injection, liquid cooled (Compliant with Final Tier 4 EPA Emissions Regulations Standards)
  • Hp Rating at 2200 RPM – 24.0
  • Oil Capacity – 12 qt
  • Maintenance Interval – 3,000hrs
Compressor
  • XL430L
  • Displacement – 30.0in3
Refrigerant (Zero Ozone Depletion Potential (ODP), internationally approved)
  • Charge – 14.5lbs
System Weight
  • System – 1,863lbs
  • 50 gallon fuel tank w/bracket -76lbs

Optional Electric Standby Power

Refrigeration Capacity: (BTU/hr)
  • 35° – 45,000
  • 0° – 26,000
  • -20° – 15,000

S-600 Single Temp

Diesel Engine Power

Dimensions
  • 85″H X 82″W X 23″D
Refrigeration Capacity: (BTU/hr)
  • 35° – 60,000
  • 0° – 32,000
  • -20° – 20,000
Heating Capacity* (BTU/hr)
  • 35/0° ambient – 50,000
Airflow Capacity
  • 3,300ft3/min
Engine
  • TK488CR – four cylinder, direct injection, liquid cooled (Compliant with Final Tier 4 EPA Emissions Regulations Standards)
  • Hp Rating at 2200 RPM – 33.0
  • Oil Capacity – 12 qt
  • Maintenance Interval – 3,000hrs
Compressor
  • X430L
  • Displacement – 30.0in3
Refrigerant (Zero Ozone Depletion Potential (ODP), internationally approved)
  • R404A
  • Charge – 14.5lbs
Weight
  • System – 1,857lbs
  • 50 gallon fuel tank w/bracket -76lbs

Optional Electric Standby Power

Refrigeration Capacity: (BTU/hr)
  • 35° – 30,000
  • 0° – 22,000
  • -20° – 15,000
